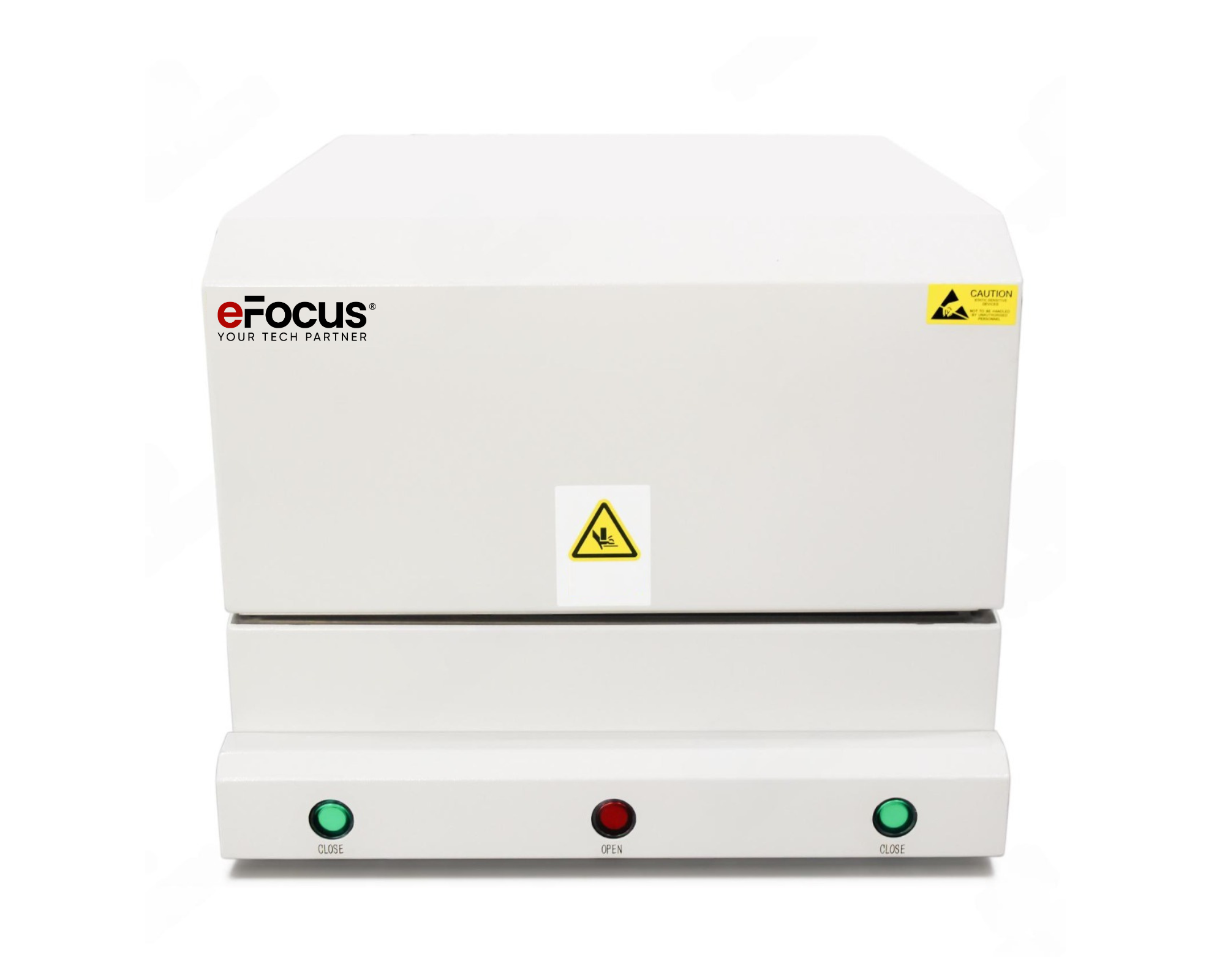

Shielding box
The Shielding Box by Efocus Instruments delivers reliable RF protection across a wide frequency range of 0.8 to 8 GHz, offering shielding effectiveness of ≥75 dB at 2.4 GHz and 5.8 GHz. Designed for flexibility, it supports a variety of standard and customizable interfaces including VGA, DB9, USB 2.0/3.0, RJ45, HDMI, and more. Equipped with four built-in filters, it features intuitive touch switch control and is compatible with RS232 command protocols, with optional PLC programming. Ideal for module and terminal testing in wireless and smart electronics, this shielding box exemplifies Efocus Instruments' commitment to innovation, precision, and quality in the field of wholesale electronic test solutions.
Technical Specifications
|
Working frequency(GHz) |
0.8～8 |
|
Shielding effect |
≥75dB@2.4GHz/5.8GHz |
|
Interface Type |
VGA,DB9,DB25,USB2.0,USB3.0,SMA,RJ45,BNC,RCA,DC,AC,optical fiber,HDMI,AV3.5, etc. (Could be customized and optional) |
|
Numbers of filters |
4 pcs |
|
Control method |
Touch switch control |
|
Safety protection measures |
Magnetic ring, light sensor dual protection, ensure operational safety |
|
Working temperature(℃) |
Normal temperature work |
|
Working size(mm) |
495(W)*595(D)*325(H) |
|
Appearance dimension(mm) |
600(W)*705(D)*405(H) |
|
Weight(Kg) |
About 50 |
|
Appearance of color |
Beige (according to customer requirements) |
