RSA5000B Series: Advanced Signal Analysis

RSA5000B Series: Advanced Signal Analysis

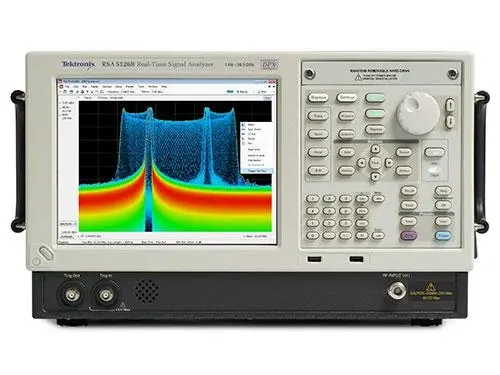

The RSA5000B Series Real-Time Spectrum Analyzers deliver fast, lab-quality RF analysis with frequency coverage up to 26.5 GHz and configurable real-time bandwidths ranging from 25 MHz to 165 MHz, depending on selected options. With high sensitivity and a low noise floor, they measure key parameters like Channel Power, OBW, and ACRL using intuitive controls.Advanced DPX® technology provides clear, real-time insight into complex RF signals, revealing details that traditional analyzers might miss. Powerful triggering capabilities detect signals as short as 434 nanoseconds, making the RSA5000B ideal for capturing, visualizing, and troubleshooting RF signals in demanding environments.

Please note, the supply of RSA5000B Real Time Spectrum Analyzers is limited. Tektronix recommends that you consider the RSA7100B for performing high bandwidth (up to 800 MHz), lower phase noise measurements or consider the USB RSA (600, or 306B) for portable field ruggedized real time spectrum analysis.
Visualize and characterize devices and components with precision and accuracy using the powerful, industry leading RSA5000B Real Time Spectrum Analyzer. This advanced spectrum analyzer makes high performance and sensitivity measurements for spurious signals much faster than other spectrum analyzers, so you can conduct conventional measurements and troubleshoot quickly, accurately and successfully.
Accelerate troubleshooting and analysis with best in class RF performance in a mid-range real-time Spectrum Analyzer.
  • Up to 26.5 GHz frequency coverage
  • Up to 165 MHz real-time signal acquisition bandwidth
  • 0.434 ?s Minimum Event Duration for 100% POI

Outstanding RF performance, every day

With its outstanding RF performance, generous feature set and easily accessible standard controls, you can rely on the RSA5000B every day. The impressive sweep speed with high sensitivity lets you complete a 10 GHz span sweep with a noise floor of -110 dBm/Hz in just 22 seconds, and multiple traces, markers and standard measurements are always at the ready.

Highlights

  • Familiar, independent controls: RBW, VBW, Quasi Peak detector, Zero-Span
  • Comprehensive measurements: Channel Power, OBW, ACRL, Spurious, CCDF, Spectrogram
  • Simultaneously see events in frequency, time domains, and real time

Wideband signal analysis: design with confidence

The RSA5000B offers signal analysis that’s both wide and highly accurate. The accuracy allows you to make higher margins in your measurements. The fact that it is wide allows you to rest assured that you’ll find what you’re seeking.

Highlights

  • Wideband analysis with great dynamic range: 165 MHz with 80 dBc SFDR
  • Frequency Response for 165 MHz BW: ±0.4 dB, 1.5°
  • Options for WLAN, Bluetooth, ZigBee, Pulsed Analysis, and more
